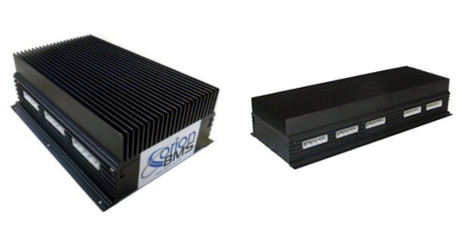

Orion BMS (Original)
| Quick Specifications |
- Capable of measuring up to 180 cells connected in series based on configuration depending on the enclosure size (smaller enclosure measures up to 108 cells).
- Configurations available in increments of 12 cells in series.
- Centralized design provides high EMI and noise immunity.
- Performs intelligent cell balancing (passive).
- Calculates state of charge (SOC).
- Uses professional automotive-grade locking connectors.
- Calculates discharge current limit (DCL) and charge current limit (CCL).
- Can measure cell voltages between 0.5v and 5.0v.
- Dual (x2) CANBUS 2.0B interfaces (fully programmable).
- OBD2 diagnostic protocol support.
- See the full features list
Below is a list of available configurations (total number of cells measured in series):
| Configuration | MSRP | Configuration | MSRP |
| 12 Cell | $760 | 24 Cell | $820 |
| 36 Cell | $890 | 48 Cell | $950 |
| 60 Cell | $1,020 | 72 Cell | $1,100 |
| 84 Cell | $1,160 | 96 Cell | $1,225 |
| 108 Cell | $1,285 | ||
| 120 Cell | $1,345 | 132 Cell | $1,405 |
| 144 Cell | $1,465 | 156 Cell | $1,525 |
| 168 Cell | $1,585 | 180 Cell | $1,680 |
* Pricing above reflects single quantity purchases. Volume pricing is available starting at quantity 5 pieces. Inquire for details.
| Software Downloads |
- Orion BMS (Original) Software Utility (Windows) (Linux) (ZIP) (BETA)
Note: This software requires a CANdapter to interface with a computer (PC).
| Documentation & Resources |
- Wiring & Installation Manual (PDF)
- Operation Manual (PDF)
- Software Utility Manual (HTML)
- Troubleshooting Guide (HTML)
- Orion BMS (Original) Software Utility (Windows) (Linux) (ZIP) (BETA)
Note: This software requires a CANdapter to interface with a computer (PC).
- OBD2 PID List (PDF) (XLS)
- Torque Extra PIDs/Sensors List (PDF) (CSV)
- Wiring Diagram Generator Tool
- Mechanical Drawing For 84-108 Cell Models (PDF)
- Mechanical Drawing For 120-180 Cell Models (PDF)
- Mechanical Models For All Models (3D STEP)
