Orion BMS 2

Summary of Major Improvements

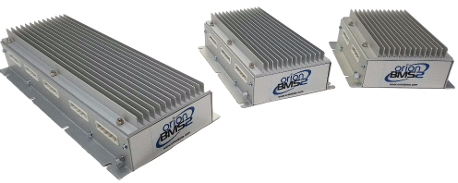

  • Significantly smaller enclosure size for 24-72 cell configurations.
  • Roughly 40% lower weight on all models due to the new enclosure design and streamlined (removable) heatsink. Minimum heat dissipation requirements apply.
  • Considerable boosts in measurement accuracy and processor speed allow for more advanced calculations and logic.
  • Direct hardware support for several popular charging protocols including hardware support for SAE J1772 (directly interfacing with the pilot / proximity lines) and CHAdeMO for DC fast charging.
  • Wider input power voltage range (now 12v-24vDC compatible) for better support on heavy vehicles and equipment. The Orion 2 BMS remains fully compatible with 12v applications.
  • Ability to directly drive certain contactors on select inputs (bypassing the need for intermediate signal relays in some situations)–see supporting documentation for details.
  • Completely redesigned multi-unit series configuration (now using Remote Cell Tap Expansion Modules). This greatly simplifies connecting multiple units together in series and improves the overall reliability.
  • New Status LED on the unit to indicate power status and the presence of faults.
  • Addition of 2x new Multi-Purpose Output pins with programmable functions.
  • Significant algorithm and software enhancements to improve overall system accuracy for parameters such as State of Charge and pack health.

See the complete Orion 2 Change Log document

Quick Specifications
  • Capable of measuring up to 180 battery cells per unit connected in series based on configuration.
  • Up to 2x Remote Cell Tap Expansion Modules can be connected to measure higher voltage battery packs (up to 800vDC max).
  • Configurations available in increments of 12 cells in series.
  • Centralized design provides high EMI and noise immunity.
  • Performs intelligent cell balancing (passive).
  • Calculates state of charge (SOC).
  • Uses professional automotive-grade locking connectors.
  • Calculates discharge current limit (DCL) and charge current limit (CCL).
  • Can measure cell voltages between 0.5v and 5.0v.
  • Dual (x2) CANBUS 2.0B interfaces which (fully programmable).
  • OBD2 diagnostic protocol support.
  • See the full features list



Original Orion BMS To Orion BMS 2 Migration Guide

Full Product Specification Sheet (PDF)

Buy Now
Below is a list of available configurations (total number of cells measured in series):

Configuration MSRP Configuration MSRP
24 Cell $820 36 Cell $890
48 Cell $950 60 Cell $1,020
72 Cell $1,100 84 Cell $1,160
96 Cell $1,225 108 Cell $1,285
120 Cell $1,345 132 Cell $1,405
144 Cell $1,465 156 Cell $1,525
168 Cell $1,585 180 Cell $1,680


 * Pricing above reflects single quantity purchases and does NOT include additional accessories such as wiring harnesses or current sensors. Volume pricing is available starting at quantity 5 pieces. Inquire for details.



Software Downloads
  • Orion BMS 2 Software Utility (Windows) (Linux) (ZIP) (BETA)

    Note:
     This software requires a CANdapter to interface with a computer (PC).



Documentation & Resources







  • Orion BMS 2 Software Utility (Windows) (Linux) (ZIP) (BETA)

    Note:
     This software requires a CANdapter to interface with a computer (PC).
